BOGE Oil & Water Separators

BOGE Condensate Cleaners

Traditional gravity separation of oil and water is overburdened as modern fully synthetic oils in particular, which are increasingly used in compressors, tend to emulsify in condensate. The good news: The BOGE CC-2 accommodates this with all compressor oils and is approved worldwide.

Condensate forms in any compressor. As the condensate mixes with oil in oil-lubricated compressors, it has to be processed prior to removal. However, even with modern fully synthetic compressor oils, there is a failing in the gravity separation that has been used up to now for processing condensate. BOGE CC-2 oil-water separators therefore operate with different filter stages. The condensate is discharged from above via a pressure relief chamber and flows through the first polypropylene element. The next filter stage takes place in the second tower, before the charcoal filters out the final impurities – therefore residual oil content of < 10 ppm is achieved at the outlet and that applies to all compressor oils.

Models Available

 Download Brochure
Model

Compressor Performance
m3/min
Oil adsorption capacity
Litres
Dimensions WxDxH
mm
Weight
kg
CC 2-2 2 2 255 x 239 x 230 3

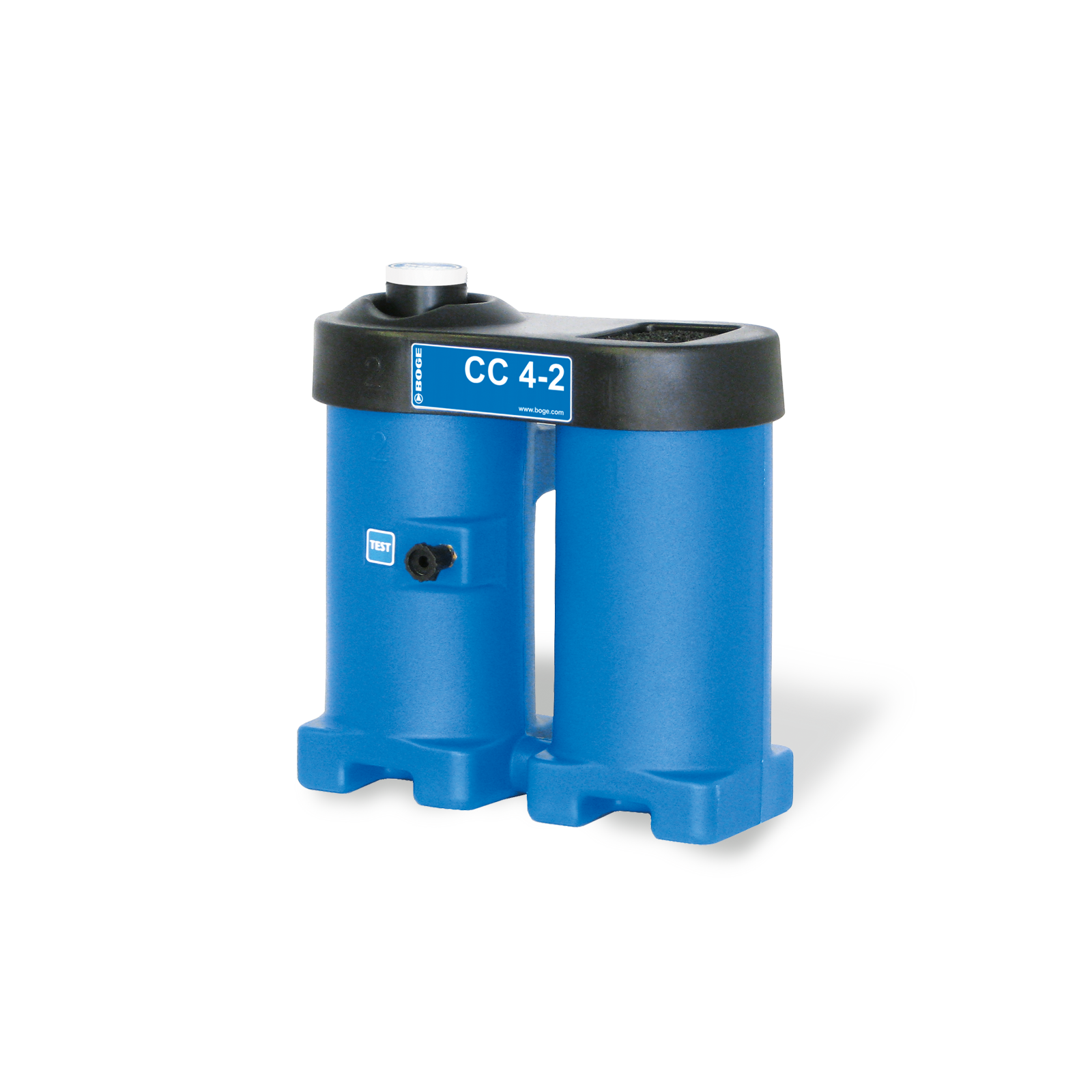

CC 4-2 4 4 392 x 368 x 210 8

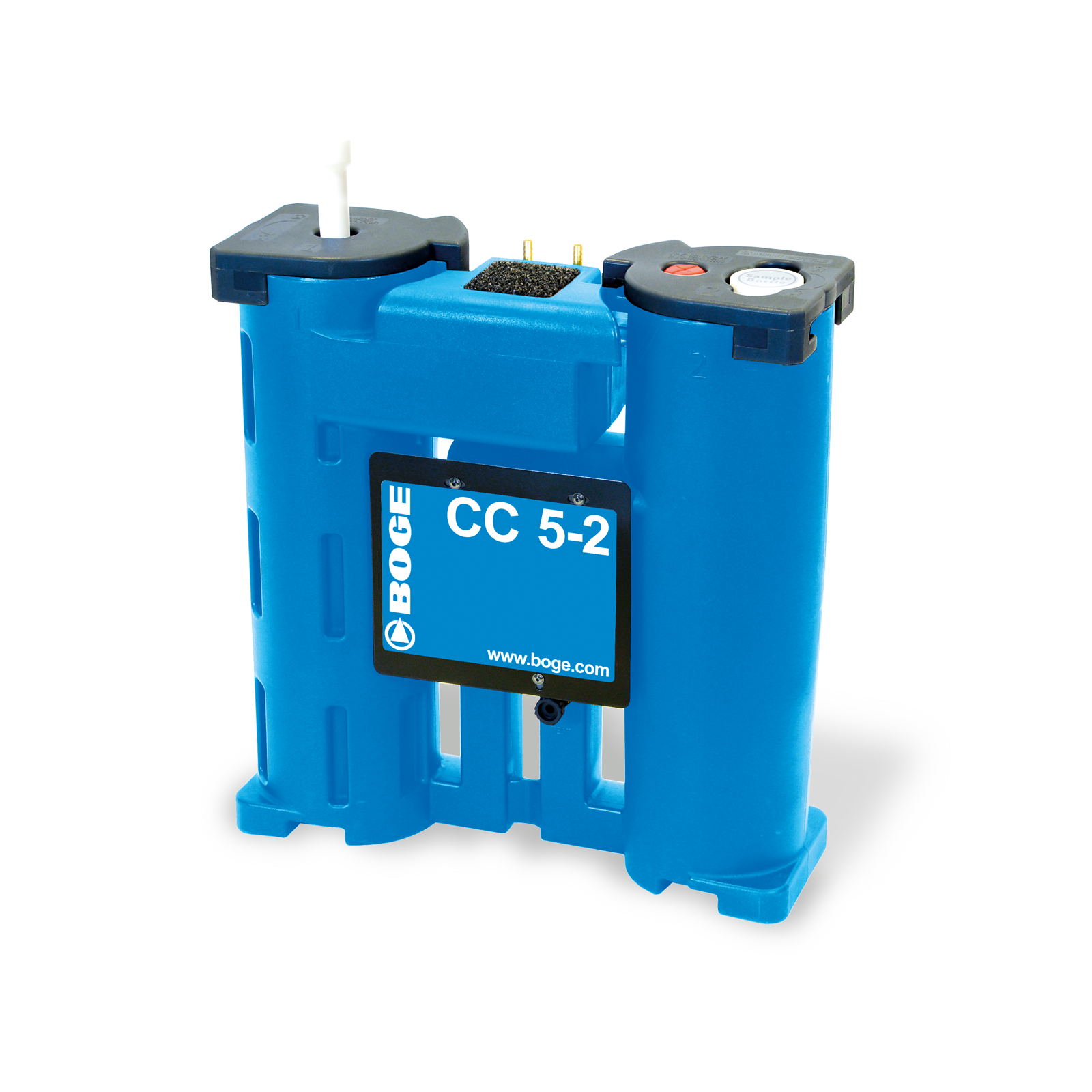

CC 5-2 5 5 530 x 610 x 190 10

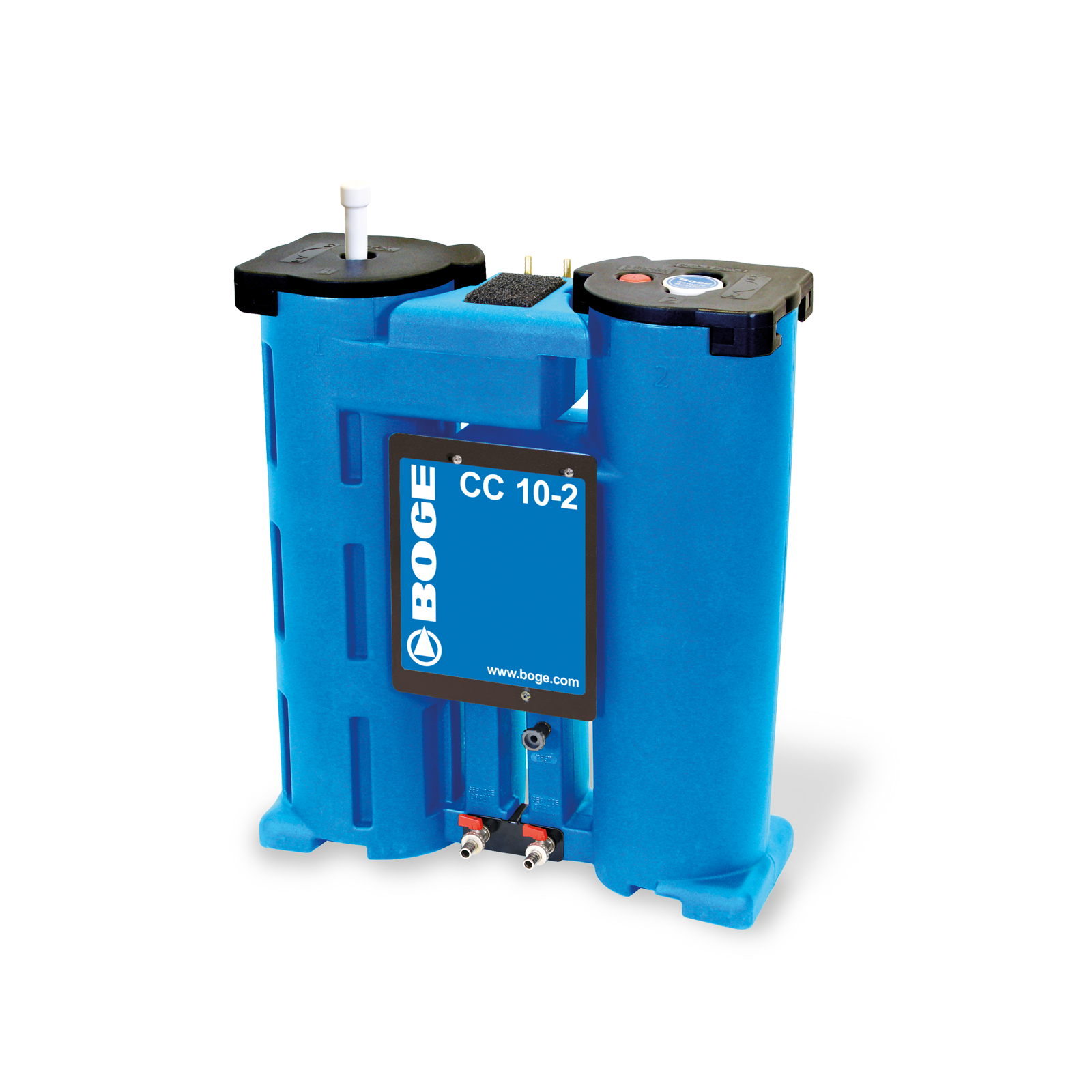

CC 10-2 10 10 650 x 750 x 240 17

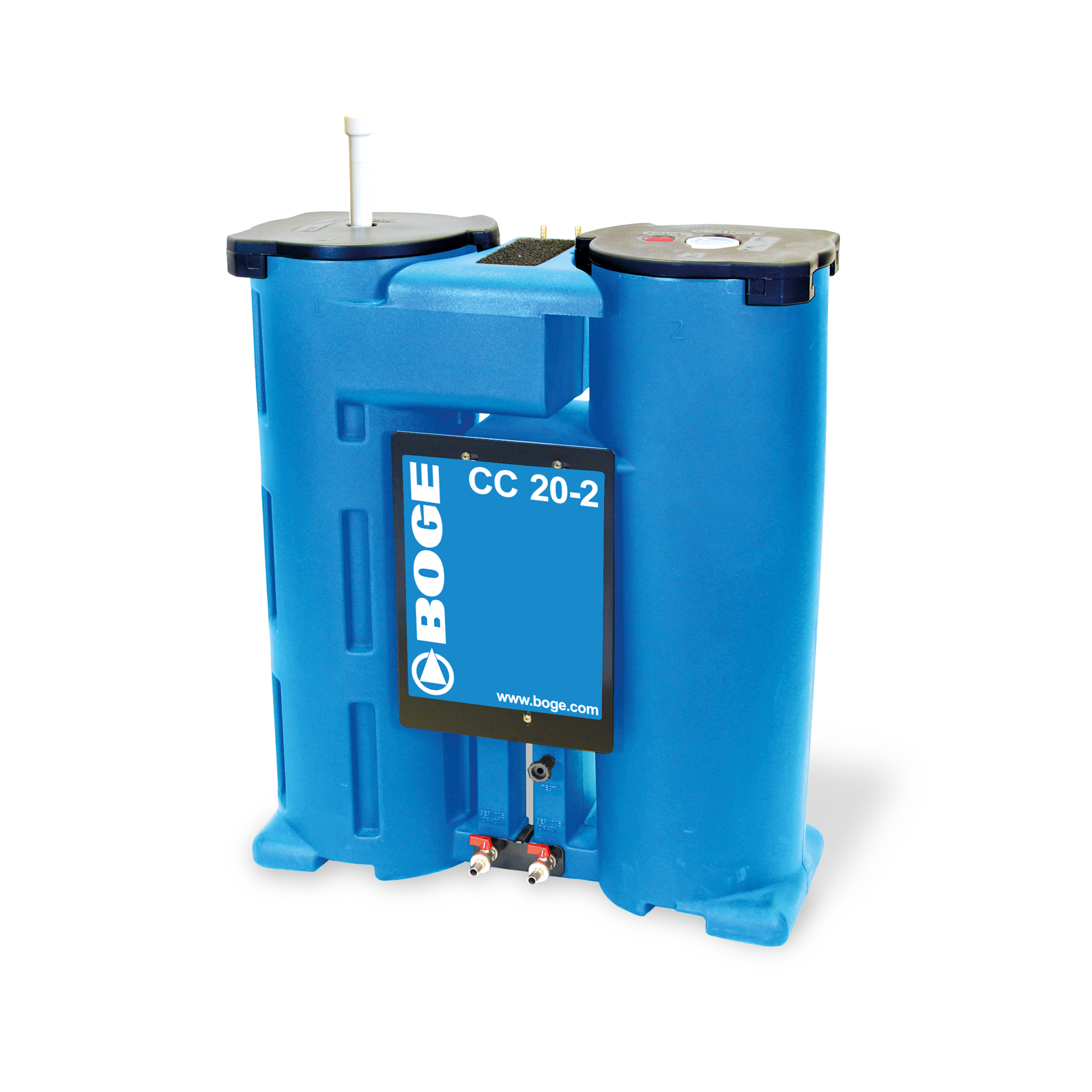

CC 20-2 20 15 780 x 900 x 305 30

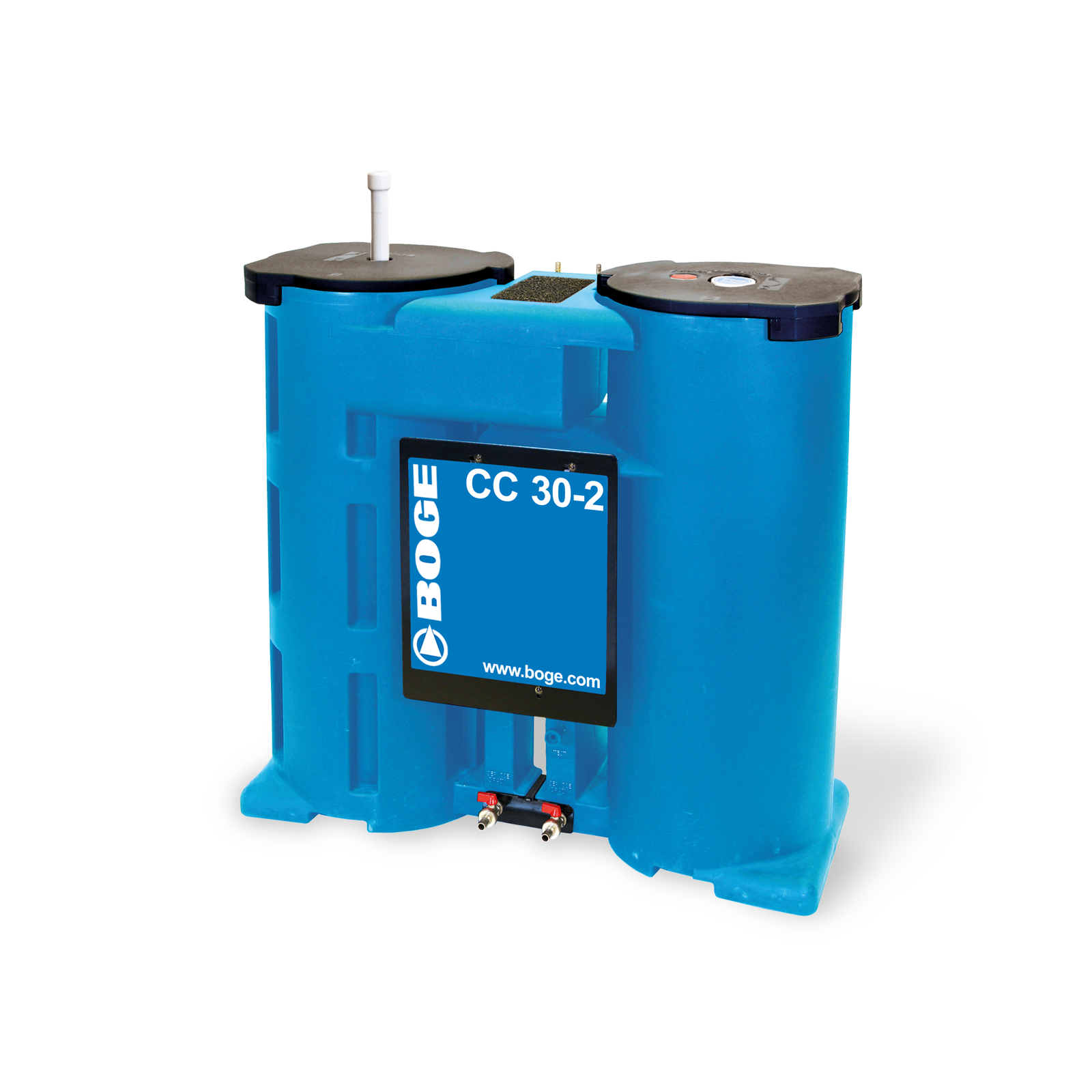

CC 30-2 30 25 970 x 900 x 380 43
CC 60-2 60 50 1160 x 1040 x 480 74
