BOGE Adsorption Dryers

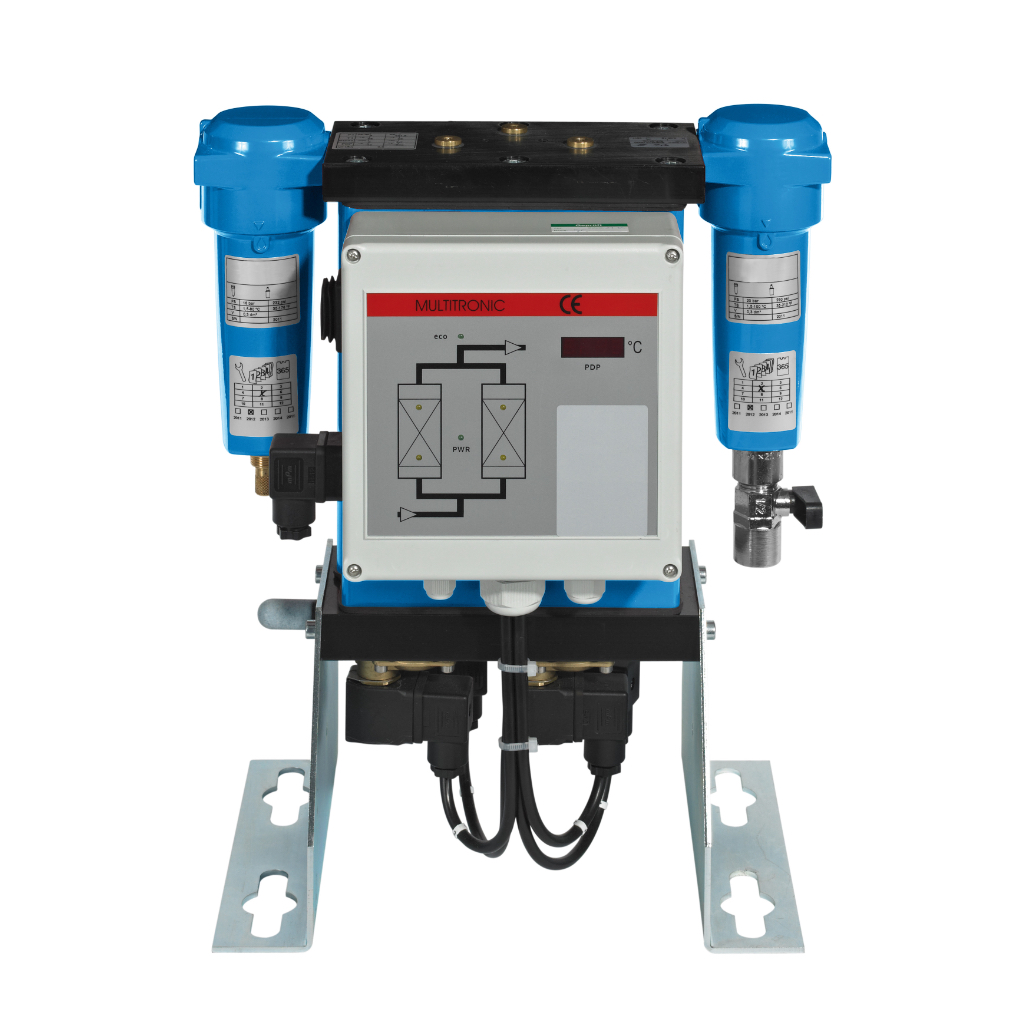

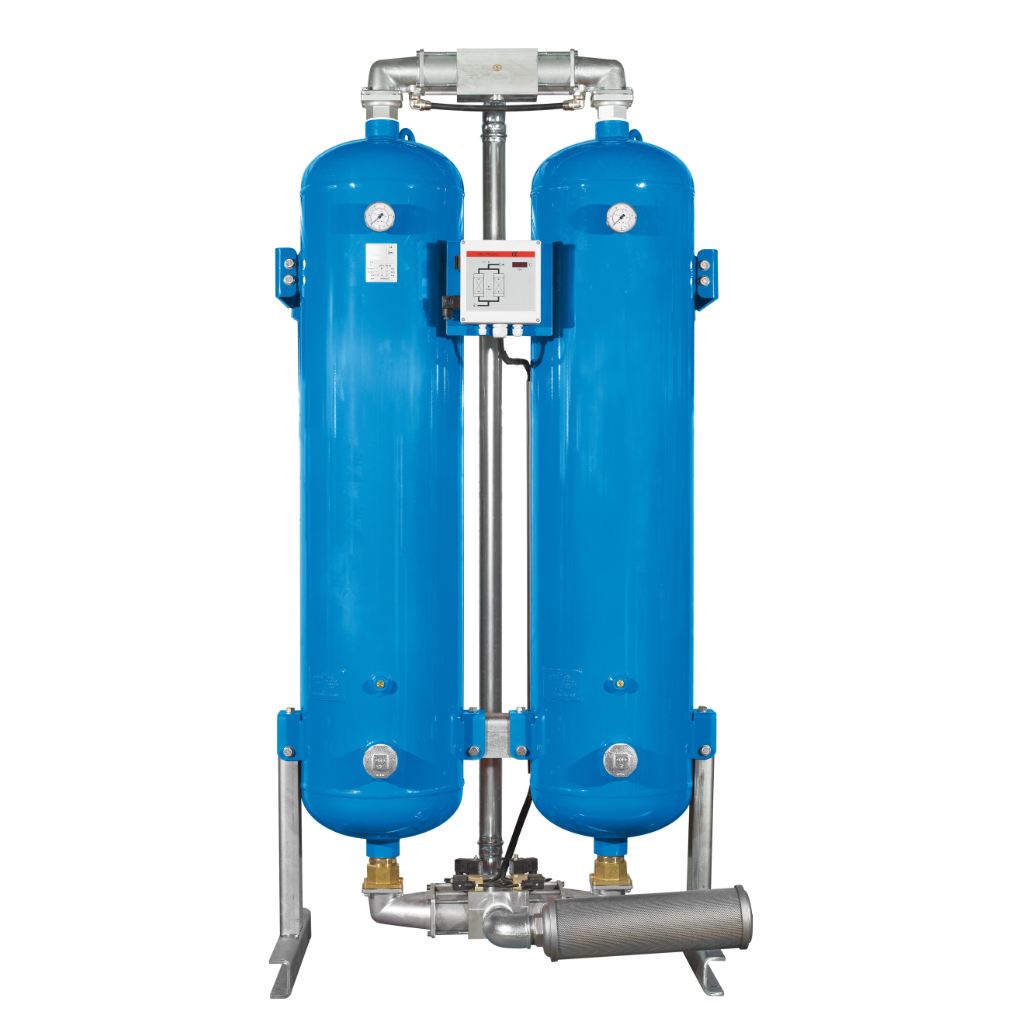

DAZ-2 Adsorption Dryer

Microprocessor Control

The microprocessor control enables energy efficient control of the adsorption dryer. An optional dew point control is available that adapts the way the system operates and in doing so reduces operating costs.

Function Display

A functional display at the front of the control cabinet permanently indicates operational status. The ten-minute cycle can save up to six percent of energy. The compressor synchronising control can also offer further energy savings potential.

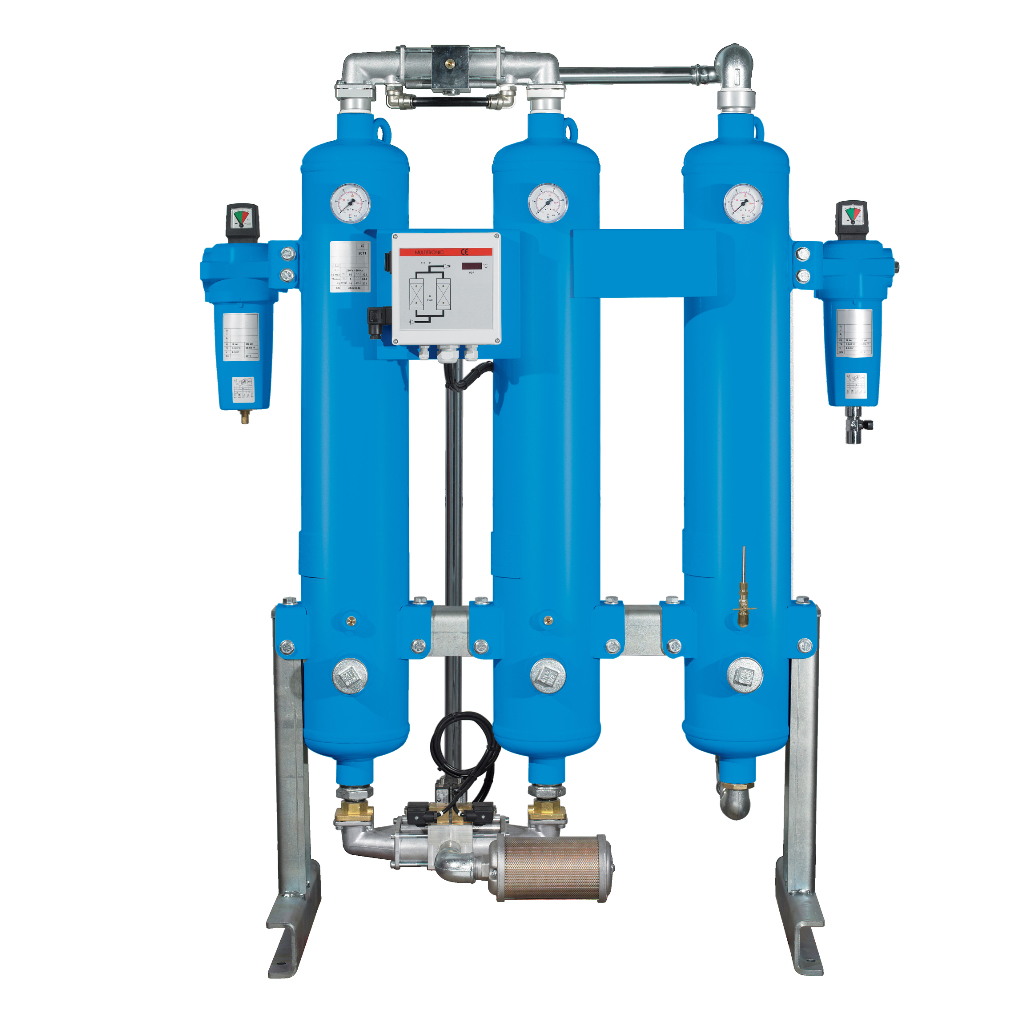

DACZ-2 Treatment System

Filtration

The entire range of adsorption compressed air dryers from BOGE are equipped with both pre and after filter as standard. Even before drying, all solids and aerosols up to 0,01 μm are removed from the compressed air supply – assuring best possible quality.

Low Residual Oil Content

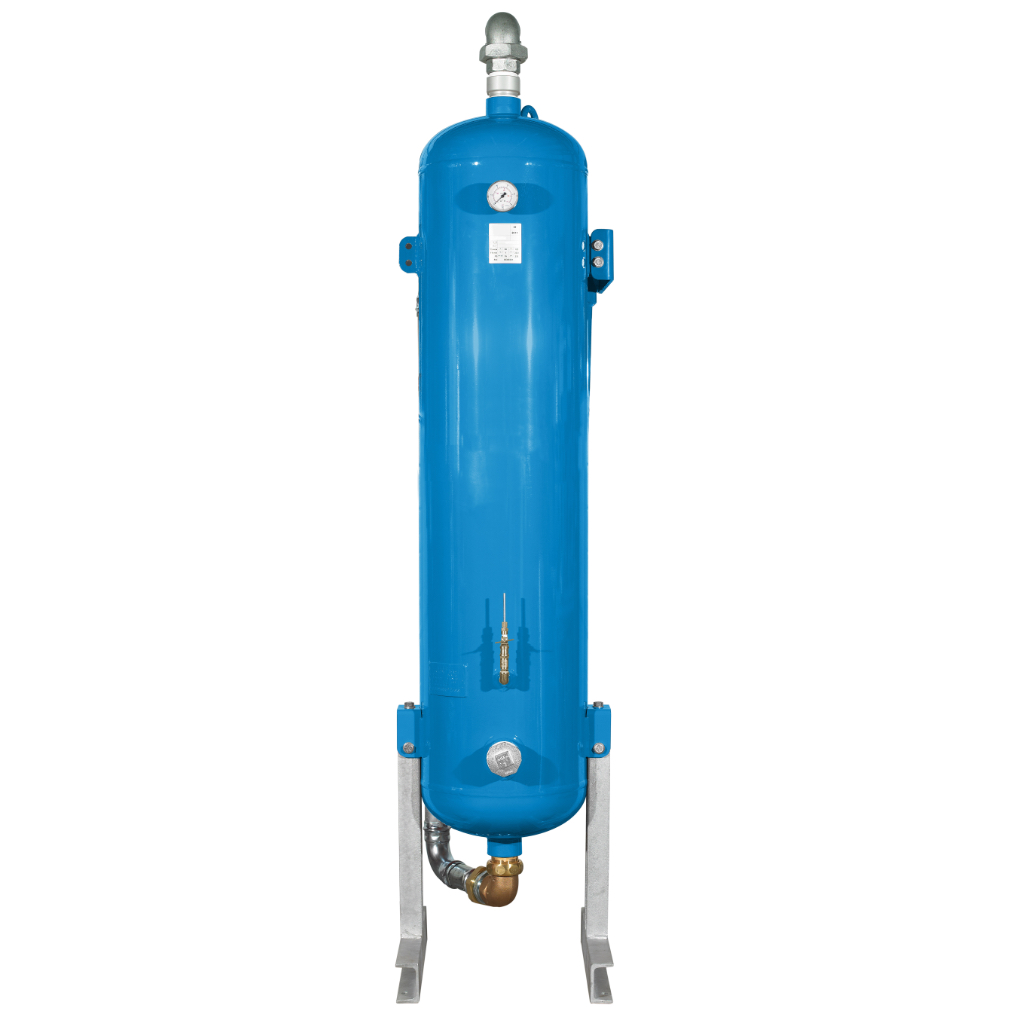

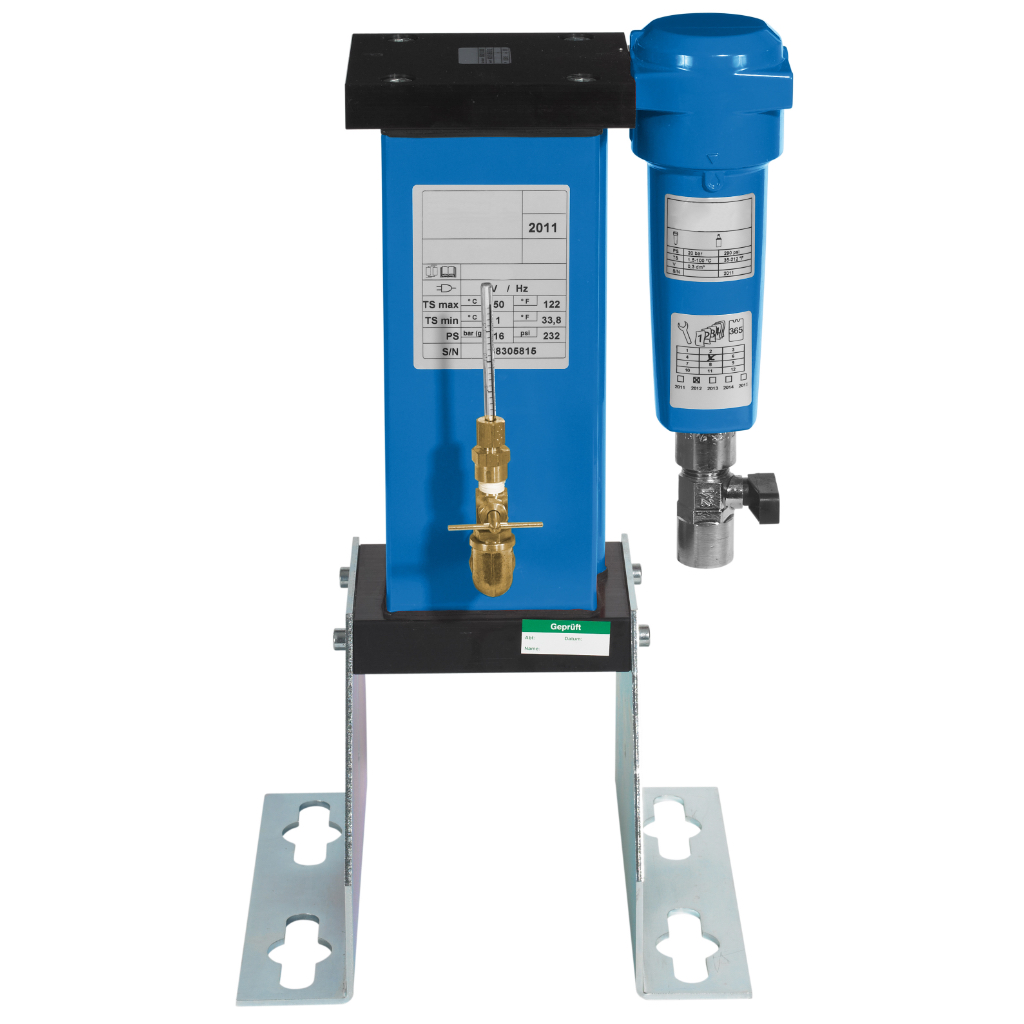

The DACZ series is equipped with an activated carbon adsorber to ensure a residual oil content of only 0,003 mg/m³ – for the highest quality compressed air.

Model Specifications

BOGE
Type
Capacity
m3/hr
Dimensions
W x D x H (mm)
Connection
Weight
Kg**
DAZ 4-2 8 326 x 216 x 400 G ¼ 11.5
DAZ 5-2 15 326 x 216 x 575 G ¼ 15.5
DAZ 6-2 25 326 x 216 x 825 G ¼ 25.0
DAZ 8-2 35 326 x 216 x 1075 G ¼ 48.0
DAZ 9-2 56 495 x 300 x 1203 G ⅜ 48.0
DAZ 11-2 72 495 x 300 x 1428 G ⅜ 56.5
DAZ 14-2 86 495 x 300 x 1628 G ½ 62.5
DAZ 18-2 105 820 x 480 x 1420 G 1 120.0
DAZ 26-2 145 820 x 480 x 1750 G 1 142.0
DAZ 36-2 200 660 x 480 x 1730 G 1 143.0
DAZ 46-2 255 630 x 530 x 1760 G 1½ 173.0
DAZ 61-2 350 790 x 585 x 1810 G 1½ 210.0
DAZ 71-2 420 820 x 605 x 1820 G 1½ 249.0
DAZ 101-2 620 860 x 635 x 1820 G 2 277.0
DAZ 126-2 750 950 x 640 x 2000 G 2 408.0
DAZ 161-2 940 1000 x 670 x 2020 G 2½ 510.0
DAZ 201 1200 1060 x 840 x 2075 DN 50 640.0
DAZ 261 1550 1270 x 900 x 2120 DN 65 830.0
DAZ 341 2000 1350 x 990 x 2160 DN 65 955.0
DAZ 421 2500 1530 x 1040 x 2210 DN 80 1075.0
DAZ 501 3000 1600 x 1100 x 2255 DN 80 1500.0
DAZ 646 3800 1875 x 1200 x 2385 DN 100 1990.0
DAZ 811 4850 1925 x 1250 x 2660 DN 100 2410.0
DAZ 1021 6100 2160 x 1565 x 2820 DN 125 2850.0
BOGE
Type
Capacity
m3/hr
Dimensions
W x D x H (mm)
Connection
Weight
Kg**
DACZ 4-2 8 459 x 225 x 400 G ¼ 15.0
DACZ 5-2 15 459 x 225 x 575 G ¼ 20.0
DACZ 6-2 25 459 x 225 x 825 G ¼ 28.0
DACZ 8-2 35 459 x 225 x 1075 G ¼ 35.0
DACZ 9-2 56 685 x 300 x 1430 G ½ 68.0
DACZ 11-2 72 685 x 300 x 1205 G ½ 81.0
DACZ 14-2 86 685 x 300 x 1630 G ¾ 92.0
DACZ 18-2 105 1140 x 467 x 1070 G 1 161.0
DACZ 26-2 145 1140 x 467 x 1320 G 1 193.0
DACZ 36-2 200 920 x 490 x 1730 G 1 193.0
DACZ 46-2 255 940 x 530 x 1760 G 1½ 234.0
DACZ 61-2 350 1220 x 585 x 1810 G 1½ 283.0
DACZ 71-2 420 1310 x 635 x 1870 G 1½ 334.0
DACZ 101-2 620 1310 x 635 x 2000 G 2 428.0
DACZ 126-2 750 1450 x 635 x 2000 G 2 428.0
DACZ 161-2 940 1500 x 670 x 2020 G 2½ 698.0
